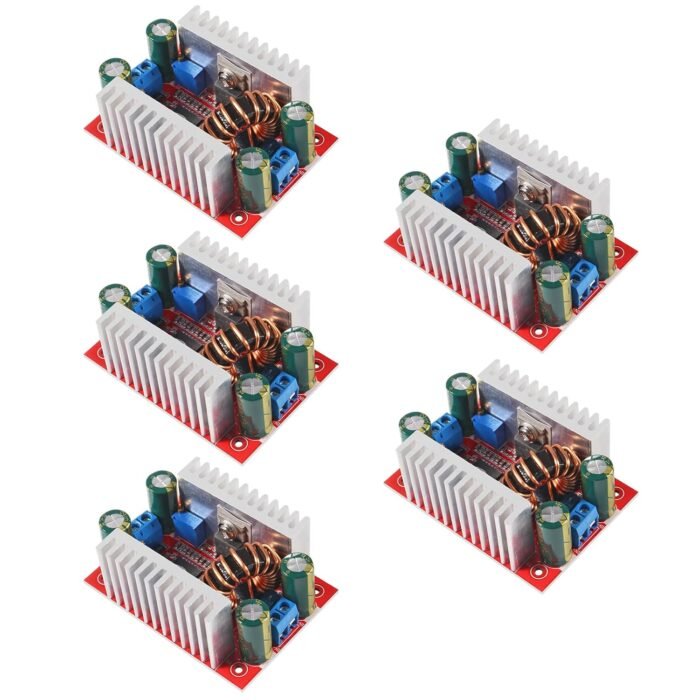

5Pcs 400W 15A DC-DC Boost Converter Step Up Module, DC 8.5V-50V to DC10V-60V Constant Current Power Supply Module Voltage Regulator Constant Power Heat Sink Adjustable Module for Electric Product

Price: $19.99
(as of Mar 22, 2025 17:05:23 UTC – Details)

400W boost constant current module non-isolated step-up module
Input voltage: DC8.5V-50V
Input current: 15A (MAX) exceeds 8A please enhance heat dissipation
Quiescent current: 10mA (12V liter 20V, the output voltage, the higher the current will increase too quiet)
Output voltage: 10-60V continuously adjustable
Constant] range: 0.2-12A
Temperature: -40 to + 85 degrees (ambient temperature is too high, please enhance heat dissipation)
Operating frequency: 150KHz
Conversion efficiency: up to 96%
Overcurrent protection: yes
Input reverse polarity protection: no
Installation: 4 2.55mm screw holes
Connection method: connection output
Applications:
DIY a power supply, 12V can input and output can 12-50V adjustable.
The power supply for your electronic device, according to your system can set the output voltage value.
As the car power supply for your laptop, PDA or a variety of digital products supply.
DIY a mobile notebook power supply: 12V coupled with high-capacity lithium battery pack, so you can go where light where books.
Solar panel regulator.
To the battery, rechargeable lithium batteries.
Driving high-power LED lights.
Package Included:
5 x 400W boost converter module

Package Dimensions ‏ : ‎ 7.4 x 5.63 x 1.38 inches; 15.52 ounces
Item model number ‏ : ‎ 13388-1
Date First Available ‏ : ‎ March 23, 2022
Manufacturer ‏ : ‎ Shutao
ASIN ‏ : ‎ B09W94MYTN
Country of Origin ‏ : ‎ China

DC-DC step up Bboost converter module DC 8.5V to 50V input voltage, 10V to 60V continuously adjustable output voltage, 15A maximum input current, 12A maximum output current
The boost module has 2 heat sink that could enhance heat dissipation. When there is a big difference between input and output voltage, please decrease power and current.
The boost module input and output are designed with screw terminals for convenient wire connection and disconnection.
400 W DC to DC power module widely used for electric equipment, digital products, laptop and more. It can also be used as a driver for high power LED lights or voltage regulator for solar panels
It is designed with 75V/80A large current dual MOS tube. Input and output use high frequency low resistance electrolytic capacitor, low ripple, and gives a stable output.
